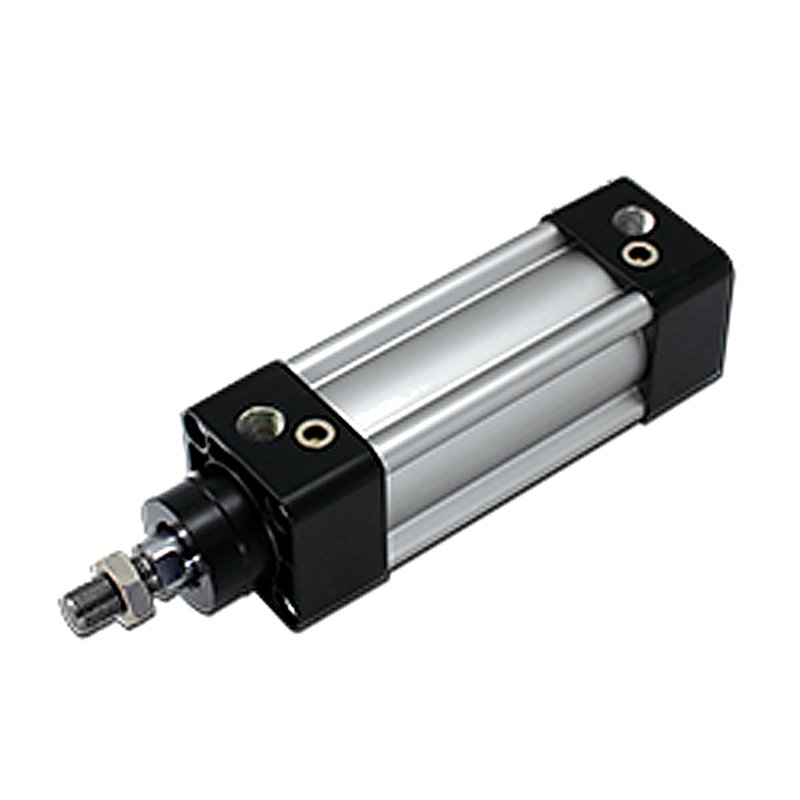

CHELIC DN Series: Standard Cylinder (Dual-Piston Sealed Type) – DN100-100-CA-G

Product Features:
– Lubrication-Free: Uses oil-impregnated bearings so the piston rod requires no lubrication
– Cushioning: In addition to fixed cushioning, the cylinder ends feature adjustable cushioning for smooth, shock-free reversing
– High-Temperature Resistance: High-temperature seal materials are available (custom order required)
– Versatile Mounting: A variety of mounting accessories to choose from
– With Magnet: A permanent magnet on the piston triggers magnetic switches to sense the motion position
– Actuation type: double-acting; Operating pressure range 1~9.0 kgf/cm²; Proof pressure 13.5
– Operating temperature range -5~70°C; Operating speed range 50~800 mm/s
Note: the adjustable stroke must be less than the cylinder stroke
